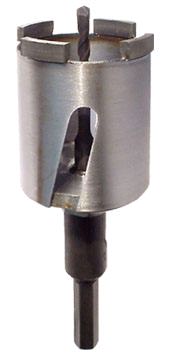

12. DIAMOND CORE DRILL BIT

(FOR DRY & WET CUTTING)

金刚石开孔钻头

The laser-welded core bit is designed for reliability, efficiency and safety on a variety of construction materials.  It's ideal for drilling in concrete, bricks and brickwork. Suitable for manual drilling machines.

Applications:

Concrete, bricks, brickwork, breeze block, sandstone, etc.

Features:

Laser welded;

High cutting speed & long lifetime;

Self cooling & fast removal;

Dry and wet use.-

Thread: M16; Effective length: 60mm;

SDS or hexagonal adapter.



Art. No	OUTER DIAMETER  (mm)	INNER DIAMETER (mm)	No. of Teeth	Size of  teeth
LCDI12026018	26	18	3	10*4*7.5
LCDI12029021	29	21	3	12*4*7.5
LCDI12038031	38	31	3	15*3.5*7.5
LCDI12052045	52	45	3	24*3.5*7.5
LCDI12068061	68	61	3/4	24*3.5*7
LCDI12078071	78	71	4	24*3.5*7.5
LCDI12082075	82	75	4/5	24*3.5*7
LCDI12107100	107	100	5	24*3.5*7.5
LCDI12117110	117	110	5	24*3.5*7.5
LCDI12127120	127	120	5	24*3.5*7.5
LCDI12152145	152	145	6	24*3.5*7.5

For fast drill of brick, block, tile and various stone materials.

Other specifications and sizes are available upon request
