17.HSS Jobber Length Drill Bit, Left-hand Cut

高速钢特殊长度左旋直柄麻花钻头

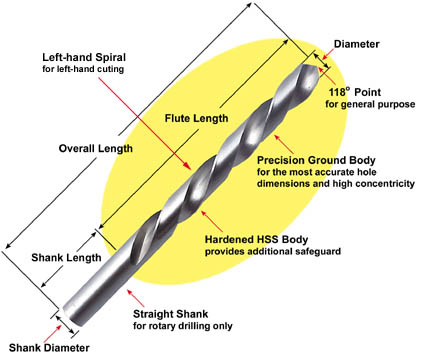

118° point angle , left-hand cut, bright finish. General purpose drill construction. A left hand helix for screw machine applications where spindles rotate counterclockwise. Application: For drilling in steel, cast steel, malleable iron, sintered metal, non-ferrous metal and plastics Dia. 1mm -10mm; 1/16"-1/2" DIN 338

　

Art. No.	SPECIFICATION		QTY/BOX (PCS/B)	QTY/CARTON (PCS/C)	NW (KG)	GW (KG)
	METRIC(mm)	INCH
LCWM17WM9015	1.1—1.5	1/16	500	20000	10	11
LCWM17WM9020	1.6—2.0	5/64	250	10000	18	19
LCWM17WM9025	2.1—2.5	5/64-3/32	250	10000	18	19
LCWM17WM9030	2.6—3.0	7/64	200	8000	19	20
LCWM17WM9032	3.1---3.2		200	8000	19	20
LCWM17WM9035	3.3—3.5	1/8	200	8000	23	24
LCWM17WM9040	3.6—4.0	9/64-5/32	100	4000	20	21
LCWM17WM9042	4.1—4.2		100	4000	20	21
LCWM17WM9045	4.3—4.5	11/64	100	4000	26	27
LCWM17WM9050	4.6—5.0	3/16	100	2000	18	19
LCWM17WM9052	5.1—5.2		100	2000	18	19
LCWM17WM9055	5.3—5.5	13/16-7/32	100	2000	22	23
LCWM17WM9060	5.6—6.0	15/64	100	2000	27	28
LCWM17WM9065	6.1—6.5	1/4	100	1500	24	25
LCWM17WM9070	6.6—7.0	17/64	100	1300	24	25
LCWM17WM9075	7.1—7.5	9/32-19/64	50	900	21	22
LCWM17WM9080	7.6—8.0	5/16	50	900	26	27
LCWM17WM9085	8.1—8.5	21/64	50	900	27	28
LCWM17WM9090	8.6—9.0	11/32	50	500	19	20
LCWM17WM9095	9.1—9.5	23/64-3/8	50	500	21	22
LCWM17WM9100	9.5—10.0	25/64	50	500	26	27
LCWM17WM9105	10.1—10.5	13/32	50	500	27	28
LCWM17WM9110	10.6—11.0	27/64	50	500	32	33
LCWM17WM9115	11.1—11.5	7/16-29/64	50	500	21	22
LCWM17WM9120	11.6—12.0	15/32	50	300	23	24
LCWM17WM9125	12.1—12.5	31/64	50	300	25	26
LCWM17WM9130	12.6—13.0	1/2	50	300	28	29
