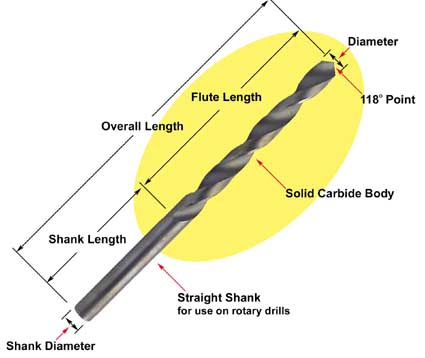

28.Solid Carbide Twist Drill Bit  -  Jobber Length

短刃全鎢鋼鑽頭



  • Carbide type:K10
  • Optimal debris transport through polished flute.
  • Fractional sizes:1/16 to 33/64" in compliance with ANSI standard.
  • For abrasive materials, fibre-reinforced plastic and other duroplastics, high-tensile steel, chilled, cast steel, manganese steel, bronze, light metals and non-ferrous heavy metals.
  • Metric sizes:1mm to 13mm in compliance with DIN338.



Art. No.

Diameter (mm)

Drilling depth (mm)

Length (mm)

LCME28038005

0.5

8.5

38

LCME28038006

0.6

9.5

38

LCME28038007

0.7

10.5

38

LCME28038008

0.8

12.5

38

LCME28038009

0.9

14.5

38

LCME28038015

1.0-1.5

17

38

LCME28043017

1.6-1.7

20

43

LCME28046018

1.8-1.9

22

46

LCME28049010

2.0-2.1

24

49

LCME28053022

2.2-2.3

27

53

LCME28057025

2.4-2.6

30

57

LCME28061030

2.7-3.0

33

61

LCME28065032

3.1-3.3

36

65

LCME28070035

3.4-3.7

39

70

LCME28075040

3.8-4.2

43

75

LCME28080045

4.3-4.7

47

80

LCME28086050

4.8-5.3

52

86

LCME28093060

5.4-6.0

57

93

LCME28101065

6.1-6.7

63

101

LCME28109070

6.8-7.5

69

109

LCME28117080

7.6-8.5

75

117

LCME28125090

8.6-9.5

81

125

LCME28133100

9.6-10.5

87

133

LCME28142110

11-11.5

94

142

LCME28151120

12.0

101

151

LCME28151140

12.1-14

101

151
