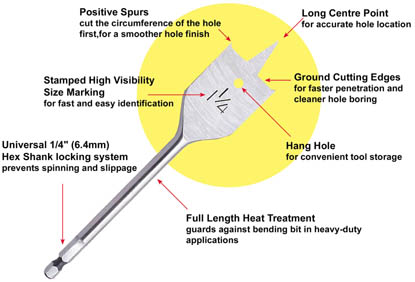

4.  WOOD FLAT/BORING BIT

木工扁钻



 (45# AND 50# CARBON STEEL)

1.Flat Wood Bit/Wood Boring Bit-A

  • Forged in one piece from High carbon steel.
  • Hardness of cutting point and blade is above 50HRC.
  • For drilling in soft and close grained wood, chipboard and floor board
  • Standard quality
  • Size:6mm - 40mm (1/4"-19/16")
  • Length:152mm (6") - 400mm (16")



2.Flat Wood Bit/Wood Boring Bit-B

  • Forged in one piece from High carbon steel.
  • Hardness of cutting point and blade is above 50HRC.
  • For drilling in soft and close grained wood, chipboard and floor board
  • Standard quality
  • Size:6mm - 40mm (1/4"-19/16")
  • Length:152mm (6") - 400mm (16")



3.Flat Wood Bit / Wood Boring Bit-C
  • Forged in one piece from High carbon steel.
  • Hardness of cutting point and blade is above 50HRC.
  • For drilling in soft and close grained wood, chipboard and floor board
  • Standard quality
  • Special 1/4" hex shank for easy chuck
  • Size:6mm - 40mm (1/4"-19/16")
  • Length:152mm (6") - 400mm (16")



4.Flat Wood Bit / Wood Boring Bit-D
  • Forged in one piece from High carbon steel.
  • Hardness of cutting point and blade is above 50HRC.
  • For drilling in soft and close grained wood, chipboard and floor board
  • Standard quality
  • Size:6mm - 40mm (1/4"-19/16")
  • Length:152mm (6") - 400mm (16")



Art. No.

Diameter

MEASUREMENT

PCS/ CTN

G.W

N.G

UNIT PRICE (USD)

mm

inch

LCWO04060152

6

1/4

27×23×28

1000

21

20



LCWO04080152

8

5/16

27×23×28

1000

27

26



LCWO04100152

10

3/8

27×23×28

800

29

28



LCWO04110152

11

7/16

27×23×28

800

29

28



LCWO04120152

12

15/32

27×23×28

800

30

29



LCWO04130152

13

1/2

27×23×28

800

30

29



LCWO04140152

14

9/16

27×23×28

800

31

30



LCWO04150152

15

19/32

27×23×28

800

31

30



LCWO04160152

16

5/8

27×23×28

800

31

30



LCWO04170152

17

21/32

27×23×28

800

32

31



LCWO04180152

18

23/32

27×23×28

700

28

27



LCWO04190152

19

3/4

27×23×28

700

29

28



LCWO04200152

20

25/32

27×23×28

600

26

25



LCWO04210152

21

13/16

27×23×28

600

26

25



LCWO04220152

22

7/8

27×23×28

600

26

25



LCWO04230152

23

29/32

27×23×28

600

28

27



LCWO04240152

24

15/16

27×23×28

500

23.5

22.5



LCWO04250152

25

1

27×23×28

500

27

26



LCWO04260152

26

1.1/32

27×23×28

500

27

26



LCWO04270152

27

1.1/16

27×23×28

500

27

26



LCWO04280152

28

1.1/8

27×23×28

500

27

26



LCWO04290152

29

1.5/32

27×23×28

500

27.5

26.5



LCWO04300152

30

1.3/16

27×23×28

400

22

21



LCWO04320152

32

1.1/4

27×23×28

400

23

22



LCWO04340152

34

1.5/16

27×23×28

400

24

23



LCWO04350152

35

1.3/8

27×23×28

400

24

23



LCWO04360152

36

1.13/32

27×23×28

300

18

17



LCWO04380152

38

1.1/2

27×23×28

300

19.5

18.5



LCWO04400152

40

1.9/16

27×23×28

300

20

19
