18.WOOD
LOCK HOLE / FORSTNER BIT
直垢迄迅怺
 |
- Made from high speed steel, precision
ground finish.

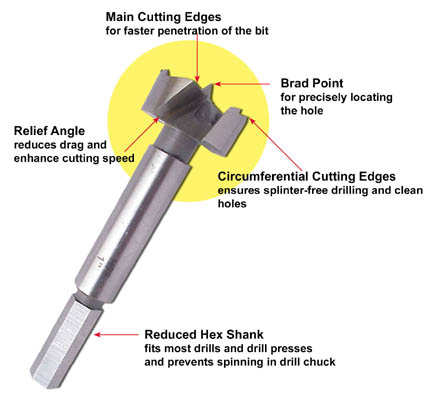

- With brad point, 2 main cutting edges
and 2 circumferential cutting edges.
- This bit drills perfectly smooth flat
bottom holes, angle holes or end cut holes.
- For drilling dimensionally accurate
and tear-free holes in solid wood, veneered wooden board, laminated
board, chipboard plywood, etc.
- Ideal for door locks, morticing,
electrical and plumbing work
- DIN 7483G.,Dia.8
-90mm,Length: 90 to 159mm
- Fractional sizes range from 1/4 to 4.1/
|
| Art. No. |
Outer
diameter (mm)
|
LENGTH
(mm) |
Handle diameter (mm)
|
UNIT
PRICE (USD)
|
|
LCWO18015064
|
15
|
64
|
6
|
|
|
LCWO18016064
|
16
|
64
|
6
|
|
|
LCWO18017064
|
17
|
64
|
6
|
|
|
LCWO18018064
|
18
|
64
|
6
|
|
|
LCWO18019064
|
19
|
64
|
6
|
|
|
LCWO18020064
|
20
|
64
|
6
|
|
|
LCWO18021090
|
21
|
90
|
7
|
|
|
LCWO18022090
|
22
|
90
|
7
|
|
|
LCWO18023090
|
23
|
90
|
7
|
|
|
LCWO18024090
|
24
|
90
|
7
|
|
|
LCWO18025090
|
25
|
90
|
7
|
|
|
LCWO18026090
|
26
|
90
|
7
|
|
|
LCWO18027090
|
27
|
90
|
7
|
|
|
LCWO18028090
|
28
|
90
|
7
|
|
|
LCWO18029090
|
29
|
90
|
7
|
|
|
LCWO18030090
|
30
|
90
|
7
|
|
|
LCWO18032090
|
32
|
90
|
10
|
|
|
LCWO18033090
|
33
|
90
|
10
|
|
|
LCWO18035090
|
35
|
90
|
10
|
|
|
LCWO18036090
|
36
|
90
|
10
|
|
|
LCWO18038090
|
38
|
90
|
10
|
|
|
LCWO18040090
|
40
|
90
|
10
|
|
|
LCWO18042090
|
42
|
90
|
10
|
|
|
LCWO18045090
|
45
|
90
|
10
|
|
|
LCWO18048090
|
48
|
90
|
10
|
|
|
LCWO18050090
|
50
|
90
|
10
|
|
|
LCWO18051090
|
51
|
90
|
10
|
|
|
LCWO18052090
|
52
|
90
|
10
|
|
|
LCWO18053090
|
53
|
90
|
10
|
|
|
LCWO18055090
|
55
|
90
|
10
|
|
|
LCWO18058090
|
58
|
90
|
13
|
|
|
LCWO18060090
|
60
|
90
|
13
|
|
|
LCWO18063090
|
63
|
90
|
13
|
|
|
LCWO18065090
|
65
|
90
|
13
|
|
|
LCWO18070090
|
70
|
90
|
13
|
|
|
LCWO18075090
|
75
|
90
|
13
|
|
|
LCWO18080090
|
80
|
90
|
13
|
|
|
LCWO18085090
|
85
|
90
|
13
|
|
|
LCWO18090090
|
90
|
90
|
13
|
|
|
LCWO18095090
|
95
|
90
|
13
|
|
|
