20.Masonry Drill Bit  -- Hot Rolled

 DIN 8039  热轧制冲击钻头

Art. No. NAME PICTURE
LCMA20-1 MASONRY DRILL, ZINC PLATED
LCMA20-2 MASONRY DRILL, NICKLE PLATED
LCMA20-3 MASONRY DRILL, CHROME PLATED
LCMA20-4 MASONRY DRILL, BLACK  OXIDE
LCMA20-5 MASONRY DRILL, BLACK & WHITE

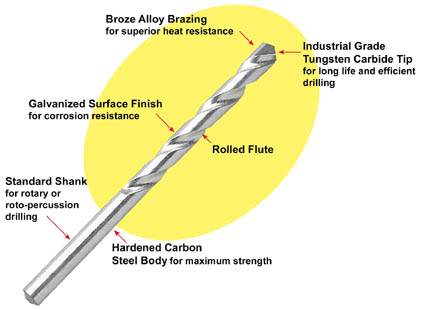

  • Hot rolled for the body.
  • Tip sharpened to provide maximum cutting power.
  • Value-for-money masonry drill bits for DIY workers.
  • For use with rotary or roto-percussion drills.
  • Ideal for drilling in stone, masonry, lightweight building materials     and similar.
  • Dia. 3 to 12mm (1/8"-12")

Art. No.

SPECIFICATION

UNIT PRICE (USD)

METRIC

INCH

LCMA20030060

3×60

1/8



LCMA20030150

3×150

1/8



LCMA20040075

4×75

5/32



LCMA20040150

4×150

5/32



LCMA20050085

5×85

7/32



LCMA20050150

5×150

7/32



LCMA20060100

6×100

15/64



LCMA20060150

6×150

15/64



LCMA20070100

7×100

9/32



LCMA20070150

7×150

9/32



LCMA20080120

8×120

5/16



LCMA20080150

8×150

5/16



LCMA20090120

9×120

11/32



LCMA20090150

9×150

11/32



LCMA20100120

10×120

3/8



LCMA20100150

10×150

3/8



LCMA20110120

11×120

3/8



LCMA20120150

12×150

15/32



LCMA20130150

13×150

1/2



LCMA20140150

14×150

9/16



LCMA20150150

15×150

19/32



LCMA20160150

16×150

5/8



LCMA20170150

17×150

5/8



LCMA20180150

18×150

23/32



LCMA20190150

19×150

3/4



LCMA20200150

20×150

25/32



LCMA20210150

21×150

27/32



LCMA20220150

22×150

7/8



LCMA20230150

23×150

29/32



LCMA20240150

24×150

15/16



LCMA20250150

25×150

1



LCMA20260150

26×150

1-1/32



LCMA20270150

27×150

1-1/16

LCMA20280150

28×150

1-7/64

LCMA20290150

29×150

1-9/64

LCMA20300150

30×150

1-3/16
Remark: 1. Other specifications and sizes are available upon request.
  2. When ordering, please specify the materials to be cut.
