24.Masonry Drill  Bit -- Cold Rolled

DIN 8039     冷轧制冲击钻头

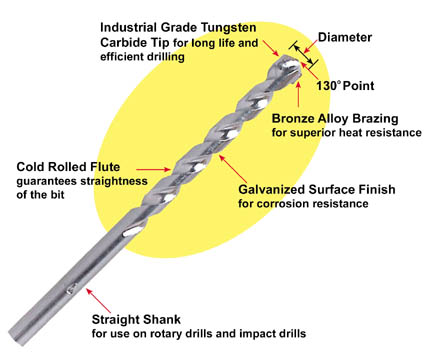

  • The body of this drill bits is cold rolled.
  • Tip sharpened to provide maximum cutting power.
  • A simple, carefully made bit, excellent value of money.
  • For use with rotary or roto-percussion drills.
  • For drilling in concrete, rock, stone, masonry, marble and breeze block.
  • Straight shank, galvanized
  • Dia. 3-13mm/1/8 to 1/2"



Art. No.

Diameter (mm)

Length    (mm)

Drilling depth (mm)

LCMA24030060

3

60

15

LCMA24040075

4

75

20

LCMA24070085

5

85

40

LCMA24060100

6

100

55

LCMA24060150

6

150

105

LCMA24065100

6.5

100

55

LCMA24070100

7

100

55

LCMA24080120

8

120

75

LCMA24080150

8

150

105

LCMA24080200

8

200

155

LCMA24090110

9

110

65

LCMA24090200

9

200

155

LCMA24100110

10

110

65

LCMA24100150

10

150

105

LCMA24100200

10

200

155

LCMA24100350

10

350

295

LCMA24120150

12

150

105

LCMA24120300

12

300

265

LCMA24120350

12

350

295

LCMA24140150

14

150

105

LCMA24140300

14

300

265

LCMA24140350

14

350

295

LCMA24160150

16

150

95

LCMA24160350

16

350

295

LCMA24180200

18

200

155

LCMA24180350

18

350

295

LCMA24200350

20

350

295

LCMA24220350

22

350

295

LCMA24250350

25

350

295

Remark: 1. Other specifications and sizes are available upon request.
  2. When ordering, please specify the materials to be cut.
