26. Masonry Drill Bit -- Multi Purpose

DIN 8039    多用途冲击钻头

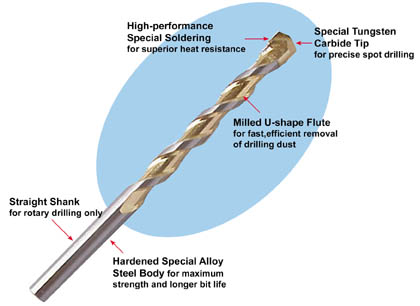

  • Ground carbide tip for precise spot drilling, also reducing noise levels and drilling pressure.
  • Extremely long life through special alloyed steel.
  • The bit for all materials.
  • Ideal for drilling through layers of different materials.
  • For drilling in  masonry, tiles, wood, chipboard, metal and plastics.
  • Dia. 3-26mm (1/8" to 1")


Art. No.

Diameter (mm)

Length    (mm)

Drilling depth (mm)

LCMA26030060

3

60

15

LCMA26040075

4

75

20

LCMA26070085

5

85

40

LCMA26060100

6

100

55

LCMA26060150

6

150

105

LCMA26065100

6.5

100

55

LCMA26070100

7

100

55

LCMA26080120

8

120

75

LCMA26080150

8

150

105

LCMA26080200

8

200

155

LCMA26090110

9

110

65

LCMA26090200

9

200

155

LCMA26100110

10

110

65

LCMA26100150

10

150

105

LCMA26100200

10

200

155

LCMA26100350

10

350

295

LCMA26120150

12

150

105

LCMA26120300

12

300

265

LCMA26120350

12

350

295

LCMA26140150

14

150

105

LCMA26140300

14

300

265

LCMA26140350

14

350

295

LCMA26160150

16

150

95

LCMA26160350

16

350

295

LCMA26180200

18

200

155

LCMA26180350

18

350

295

LCMA26200350

20

350

295

LCMA26220350

22

350

295

LCMA26250350

25

350

295

Remark: 1. Other specifications and sizes are available upon request.
  2. When ordering, please specify the materials to be cut.
