11.HSS
Jobber Length STRAIGHT
SHANK TWIST Drill Bit, Titanium Coated, ANSI B 94.11M-1797
英制高速钢直柄镀钛美标ANSI
B 94.11M麻花钻头

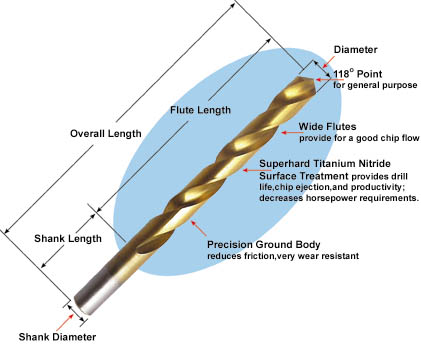

- 118° point angle(135° split point
available).
- Titanium nitride coating lasts up to six
times longer than standard high speed steel. Coating is very hard
giving very long drill bit life, up to 8 times.
- Ideal for production work or repetitive
drilling.
- For drilling in steel, cast steel,
malleable iron, sintered metal, non-ferrous metal and plastics.
- Size:1/16"-33/64"
|
|
|
Art.
No.
|
SPECIFICATION
|
|
METRIC
(mm)
|
INCH
|
|
LCME11TG6010
|
0.2—1.0
|
1/64-3/64
|
|
LCME11TG6015
|
1.1—1.5
|
1/16
|
|
LCME11TG6020
|
1.6—2.0
|
5/64
|
|
LCME11TG6025
|
2.1—2.5
|
5/64-3/32
|
|
LCME11TG6030
|
2.6—3.0
|
7/64
|
|
LCME11TG6035
|
3.1—3.5
|
1/8
|
|
LCME11TG6040
|
3.6—4.0
|
9/64-5/32
|
|
LCME11TG6045
|
4.1—4.5
|
11/64
|
|
LCME11TG6050
|
4.6—5.0
|
3/16
|
|
LCME11TG6055
|
5.1—5.5
|
13/16-7/32
|
|
LCME11TG6060
|
5.6—6.0
|
15/64
|
|
LCME11TG6065
|
6.1—6.5
|
1/4
|
|
LCME11TG6070
|
6.6—7.0
|
17/64
|
|
LCME11TG6075
|
7.1—7.5
|
9/32-19/64
|
|
LCME11TG6080
|
7.6—8.0
|
5/16
|
|
LCME11TG6085
|
8.1—8.5
|
21/64
|
|
LCME11TG6090
|
8.6—9.0
|
11/32
|
|
LCME11TG6095
|
9.1—9.5
|
23/64-3/8
|
|
LCME11TG6100
|
9.5—10.0
|
25/64
|
|
LCME11TG6105
|
10.1—10.5
|
13/32
|
|
LCME11TG6110
|
10.6—11.0
|
27/64
|
|
LCME11TG6115
|
11.1—11.5
|
7/16-29/64
|
|
LCME11TG6120
|
11.6—12.0
|
15/32
|
|
LCME11TG6125
|
12.1—12.5
|
31/64
|
|
LCME11TG6130
|
12.6—13.0
|
1/2
|
|
LCME11TG6135
|
13.1—13.5
|
33/64-17/32
|
|
LCME11TG6140
|
13.6—14.0
|
35/64
|
|
LCME11TG6145
|
14.1-14.9
|
9/16-37/64
|
|
LCME11TG6150
|
15.0-15.5
|
19/32-39/64
|
|
LCME11TG6160
|
15.6-17.0
|
5/8-41/64-21/32
|
|
LCME11TG6175
|
17.1-17.9
|
43/64-11/16-45/64
|
|
LCME11TG6180
|
18.0-19.0
|
23/32-47/64
|
|
LCME11TG6200
|
19.1-20.0
|
3/4-49/64-25/32
|
Package & Sets
|
LCME11TG6131
13pcs HSS Jobber Drill
Bit Titanium Nitride Coated in metal box |
LCME11TG6132
13pcs HSS Twist Drill Bit
Titanium Nitride Coated in Blow
Moulding case with card |
LCME11TG6133
13pcs HSS Jobber Drill
Bits Titanium Nitride Coated in
plastic box |
|
|
|
|
|
Sizes: 1/16 to 1/4 by 64ths
PACKING： INNER：METAL
BOX OUTER：CARTON
QTY/CARTON（SET）：80
CARTON SIZE(cm)：32.5
x 30 x 28 WEIGHT(KG)/CARTON：
G.W：17
N.W：16 |
Size: 1/16-1/4 by 64ths
PACKING： INNER：METAL
BOX OUTER：CARTON
QTY/CARTON（SET）：80
CARTON SIZE(cm)：32.5
x 30 x 28 WEIGHT(KG)/CARTON：
G.W：17
N.W：16 |
Sizes: 1/16 to 1/4 by 64ths
PACKING： INNER：METAL
BOX OUTER：CARTON
QTY/CARTON（SET）：80
CARTON SIZE(cm)：32.5
x 30 x 28 WEIGHT(KG)/CARTON：
G.W：17
N.W：16 |
|
LCME11TG6151
15pcs HSS Jobber Drill
Bits Titanium Nitride Coated in
metal box |
LCME11TG6211
21pcs HSS Jobber Drill
Bits Titanium Nitride Coated in
metal box |
LCME11TG6212
21pcs HSS Jobber Drill
Bits Titanium Nitride Coated
in blow moulding case |
|
|
|
|
|
Sizes: 1/16, 3/32, 1/8, 5/32,
3/16, 7/32,1/4,9/32, 5/16, 11/32, 3/8, 13/32, 7/16, 15/32, 1/2"
|
Sizes: 1/16 to 3/8 by 64ths
PACKING：
INNER：
METAL BOX OUTER：
CARTON QTY/CARTON（SET）：25
CARTON SIZE(cm)：40
x 25 x 18 WEIGHT(KG)/CARTON：
G.W：19
N.W：18 |
Sizes: 1/16 to 3/8 by 64ths
PACKING： INNER：
METAL BOX OUTER：
CARTON QTY/CARTON（SET）：25
CARTON SIZE(cm)：40
x 25 x 18 WEIGHT(KG)/CARTON：
G.W：19
N.W：18 |
|
LCME03TG6212 (INCH)
21 PCS TITANIUM
NITRIDE COATED COMPLETE GROUND TWIST DRILL SET |
LCME11TG6281
28pcs HSS Jobber Drill
Bits Titanium Nitride Coated in
blow moulding case |
LCME11TG6291
29pcs HSS Jobber Drill
Bits Titanium Nitride Coated in
metal box |
|
|

|
|
SPECIFICATION（inch）：1/16
5/64 3/32 7/64 1/8 9/64 5/32 11/64 3/16 13/64 7/32 15/64 1/4 17/64 9/32
19/64 5/16 21/64 11/32 23/64 3/8 PACKING ：
INNER：
BFC OUTER：
CARTON QTY/CARTON（SET）：10
CARTON SIZE(cm)：52
x 28 x 19 WEIGHT(KG)/CARTON：
G.W：12
N.W：9.5 |
Sizes: 2x1/16, 2x5/64,2x3/32,
2x 7/64,2x1/8,9/64,5/32,11/64, 2x3/16,13/64,7/32,15/64,
2x1/4,17/64,9/32,19/64, 5/16,21/64,11/32,23/64, 3/8 |
Sizes: 1/16 to 1/2 by 64ths
PACKING ：INNER：
METAL BOX OUTER：
CARTON QTY/CARTON（SET）：20
CARTON SIZE(cm)：44
x 27 x 20 WEIGHT(KG)/CARTON：
G.W：31
N.W：30 |
|
