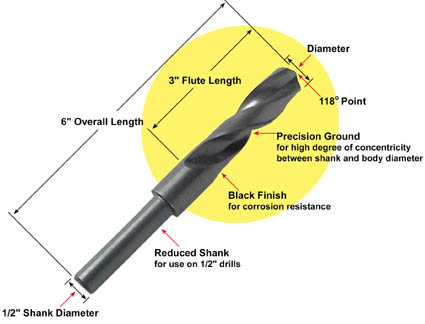

• ANSI standard.
• 118° point angle.
• Industrial quality.
• All drills are 6" in length with 1/2" reduced shank.
• For use in 1/2" or larger drill chucks.
• Ideal for drilling in low and medium tensile strength materials.
• Size:1/2" -2"

Art. No.

SPECIFICATION

METRIC (mm)

INCH

LCME19FG9070

6.6—7.0

17/64

LCME19FG9075

7.1—7.5

9/32-19/64

LCME19FG9080

7.6—8.0

5/16

LCME19FG9085

8.1—8.5

21/64

LCME19FG9090

8.6—9.0

11/32

LCME19FG9095

9.1—9.5

23/64-3/8

LCME19FG9100

9.5—10.0

25/64

LCME19FG9105

10.1—10.5

13/32

LCME19FG9110

10.6—11.0

27/64

LCME19FG9115

11.1—11.5

7/16-29/64

LCME19FG9120

11.6—12.0

15/32

LCME19FG9125

12.1—12.5

31/64

LCME19FG9130

12.6—13.0

1/2

LCME19FG9135

13.1—13.5

33/64-17/32

LCME19FG9140

13.6—14.0

35/64

LCME19FG9145

14.1-14.9

9/16-37/64

LCME19FG9150

15.0-15.5

19/32-39/64

LCME19FG9160

15.6-17.0

5/8-41/64-21/32

LCME19FG9175

17.1-17.9

43/64-11/16-45/64

LCME19FG9180

18.0-19.0

23/32-47/64

LCME19FG9200

19.1-20.0

3/4-49/64-25/32
