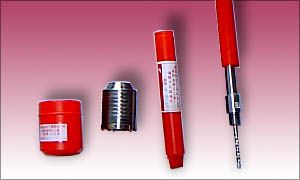

13.WALL
HOLE MAKING DRILL BIT
墙壁开孔器
- Tungsten carbide tipped cutting teeth
and pilot drill.
- Interchangeable SDS-plus &
hex shank threaded adapter (M16).
- For the professional
use.
- Deep drilling by using extension
shank.
- To be used on rotary and hammer
drills.
- Applied to concrete, stone, masonry
and bricks.
- Dia. 25-125mm (1"-5")
- Total Length: 72mm
- Working Length: 107mm
|
|
|
|
|

|
Art.
No.
|
Diameter
(mm)
|
Length
(mm)
|
|
general
type
|
|
LCMA13025075
|
25
|
75
|
|
LCMA13029075
|
29
|
75
|
|
LCMA13030075
|
30
|
75
|
|
LCMA13032075
|
32
|
75
|
|
LCMA13035075
|
35
|
75
|
|
LCMA13038075
|
38
|
75
|
|
LCMA13040075
|
40
|
75
|
|
LCMA13045075
|
45
|
75
|
|
LCMA13050075
|
50
|
75
|
|
LCMA13055075
|
55
|
75
|
|
LCMA13060075
|
60
|
75
|
|
LCMA13065075
|
65
|
75
|
|
LCMA13070075
|
70
|
75
|
|
LCMA13075075
|
75
|
75
|
|
LCMA13080075
|
80
|
75
|
|
LCMA13085075
|
85
|
75
|
|
LCMA13090075
|
90
|
75
|
|
LCMA13095075
|
95
|
75
|
|
LCMA13100075
|
100
|
75
|
|
LCMA13110075
|
110
|
75
|
|
LCMA13120075
|
120
|
75
|
|
more
long corkscrew more
thick Arbors
|
|
LCMA13050110
|
50
|
110
|
|
LCMA13055110
|
55
|
110
|
|
LCMA13060110
|
60
|
110
|
|
LCMA13065110
|
65
|
110
|
|
LCMA13070110
|
70
|
110
|
|
LCMA13075110
|
75
|
110
|
|
LCMA13080110
|
80
|
110
|
|
special
long type
|
|
LCMA13050150
|
50
|
150
|
|
LCMA13055150
|
55
|
150
|
|
LCMA13060150
|
60
|
150
|
|
LCMA13065150
|
65
|
150
|
|
LCMA13080150
|
80
|
150
|
Six tungsten carbide in hammer drill bit quality. Thin walled and sturdy core
body. Vacuum brazed and hardened,
ball bearing blasted and environmentally
friendly coating. Fast drilling progress and long life.
Powerful penetration due to tungsten carbide teeth. Suitable for even the
toughest brickwork.
For working in construction or installation trade.
|
